Panay Trunkline

Continuation of Panay West Corridor — Nabas hub into Aklan inland highway, then Capiz toward Roxas City and Iloilo.

Planned Philippines · Panay · Aklan · Capiz · complement to Panay West Corridor

Supplementary trunkline that picks up where Panay West Corridor ends at Pandan Norte / Nabas and carries traffic inland across Aklan (toward Kalibo) into Capiz, with terminal branches to Roxas City and south toward Iloilo.

Screenshot-aligned alignments — green feeder from Antique, yellow Nabas north spur, pink inland magistrale, orange Altavas north alternative, purple Iloilo branch.

Programme logic

From Antique

PWC delivers San Jose → Culasi → Pandan Norte. Trunkline starts as the Solido → Nabas Crossing feeder.

Nabas hub

Crossing splits three ways: north spur (local / Boracay approach), inland pink magistrale, and eventual PGN narrative.

Sigma split

Capiz hub: pink north to Roxas City gateway; purple south toward Dao / Dumarao / Iloilo corridor.

Corridor tracing — Nabas → Banga → Sigma → Roxas / Iloilo

Combined interactive map of Part 1 (Aklan) and Part 2 (Capiz + branches). Click once to enable scroll zoom.

Antique feeder (green) Nabas north spur Inland trunk / Roxas Altavas north alt. Iloilo branch

  1. 1 Nabas Crossing
  2. 2 Ibajay bypass
  3. 3 Malinao
  4. 4 Banga / Taba-ao
  5. 5 Altavas
  6. 6 Sigma Hub
  7. 7 Roxas (Lanot)
  8. 8 Dao → Iloilo
KML · Part 1 Aklan → KML · Part 2 Capiz/Iloilo → GeoJSON Part 1 → GeoJSON Part 2 →

Part 1 — Aklan extension

SegmentColourRole
Solido → Nabas CrossingGreenFeeder from Antique / Pandan Norte into Aklan
Nabas Crossing → Raffy's Cafe / GibonYellowLocal north spur (terminus near Boracay approach)
Nabas → Ibajay → Malinao → BangaPinkMain inland bypass toward Kalibo / Capiz

Part 2 — Capiz magistrale & branches

SegmentColourRole
Taba-ao → Altavas → Sigma HubPinkPrimary inland magistrale into Capiz
Batuytoy → Tinago Lake → Man-upOrangeAltavas north alternative
Sigma → Panitan → Adlawan → LanotPinkRoxas City gateway branch
Sigma → Dao → Dumarao corridorPurpleSouth branch toward Iloilo

Key hubs

Nabas Crossing

Interface with Panay West Corridor · three-way split (north spur / inland trunk / local).

Banga / Taba-ao

Aklan River crossing · handoff from Part 1 inland bypass into Capiz magistrale.

Sigma Hub

Capuyhan area — Roxas north vs Iloilo south decision node.

Route proposal maps

Terrain screenshots from Panay Trunkline (AklanCapiz) — Nabas hub through Aklan inland, Capiz magistrale, Roxas and Iloilo branches. Interactive map polylines redigitized to match these screenshots (v2, 24. 7. 2026).

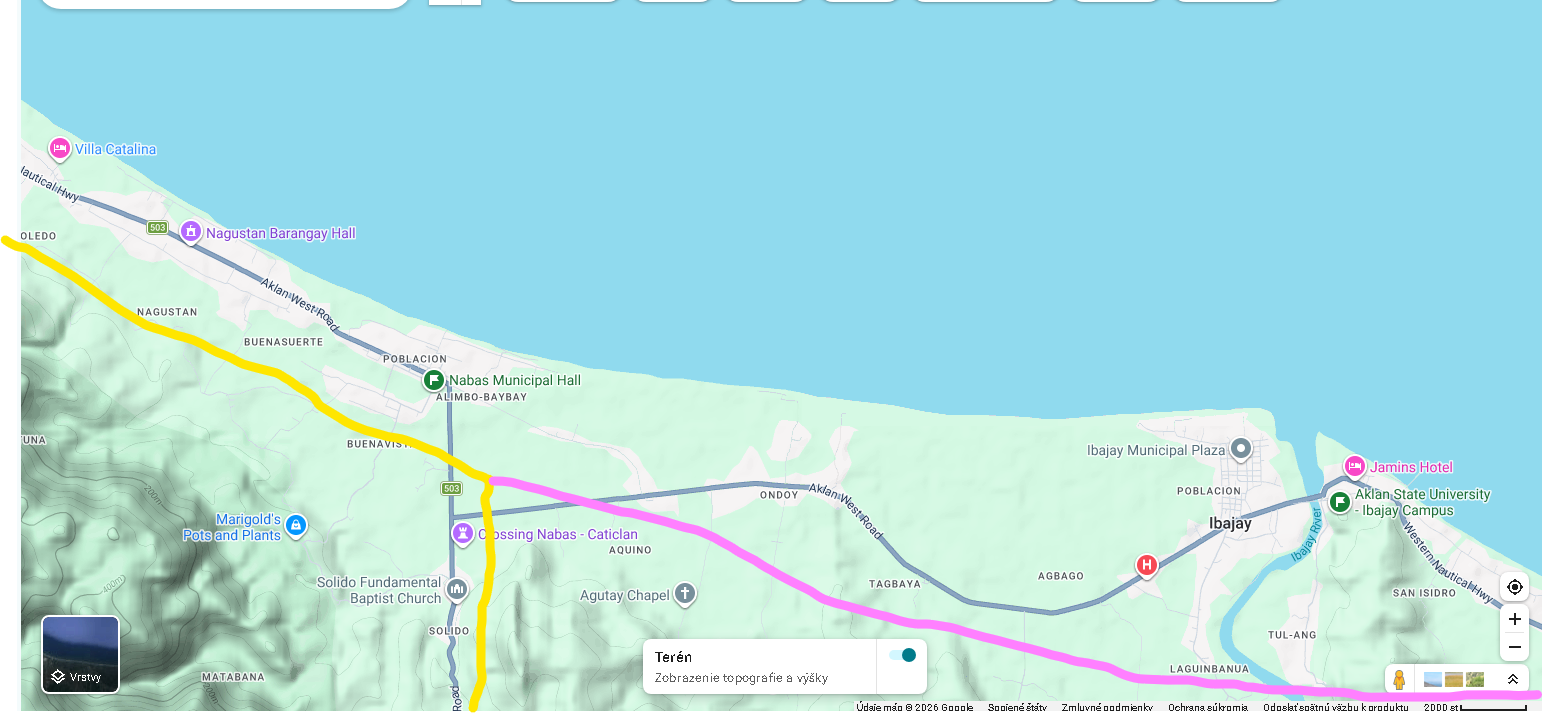

01 — nabas — ibajay — west
01 — nabas — ibajay — west

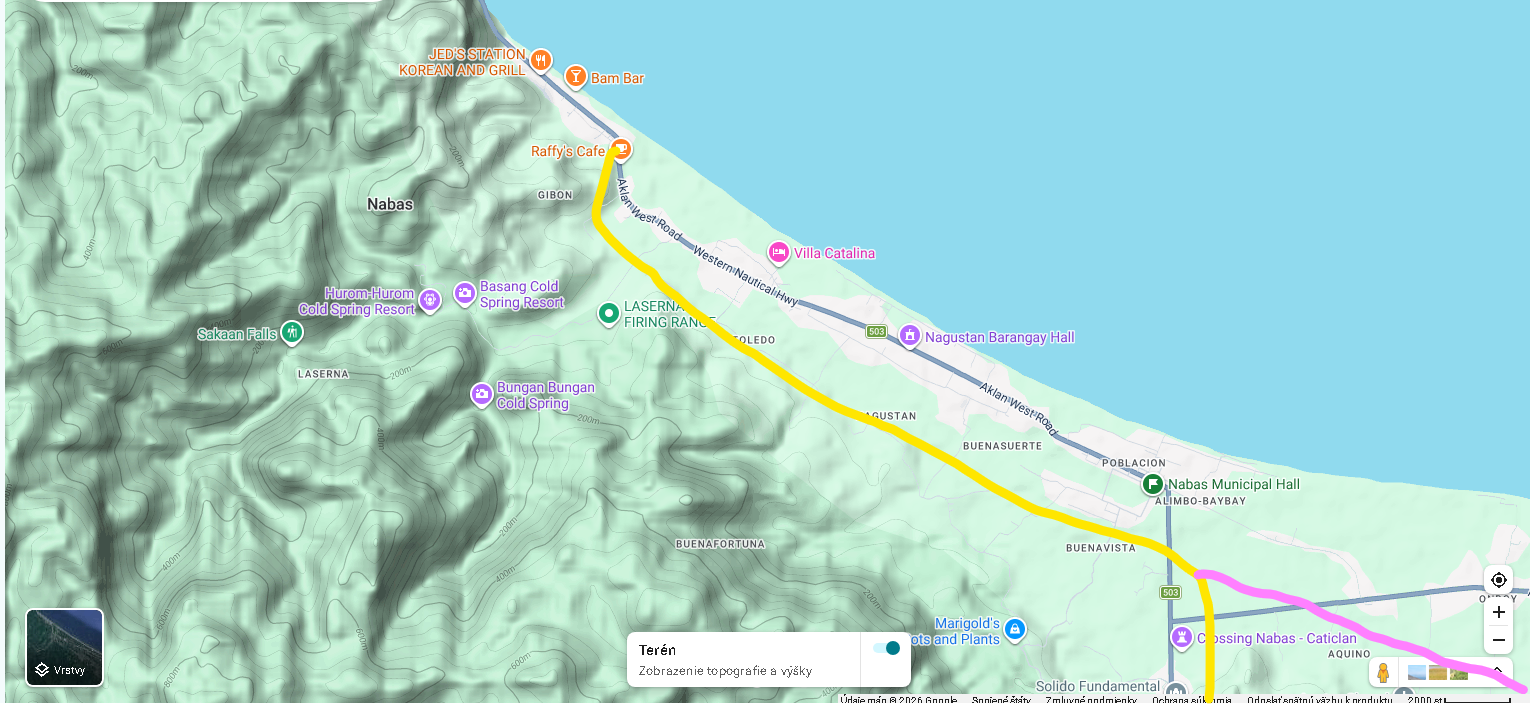

02 — raffys — nabas — crossing
02 — raffys — nabas — crossing

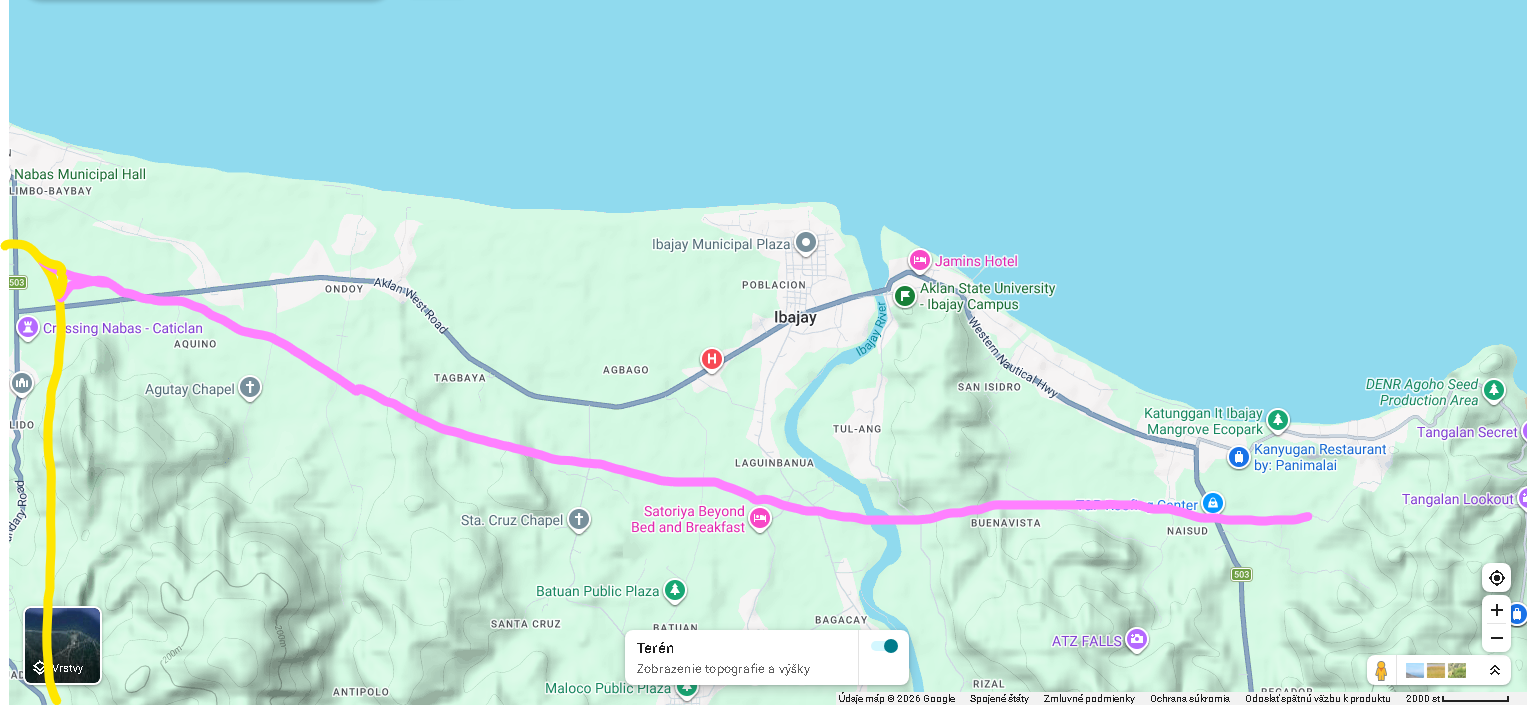

03 — nabas — ibajay — naisud
03 — nabas — ibajay — naisud

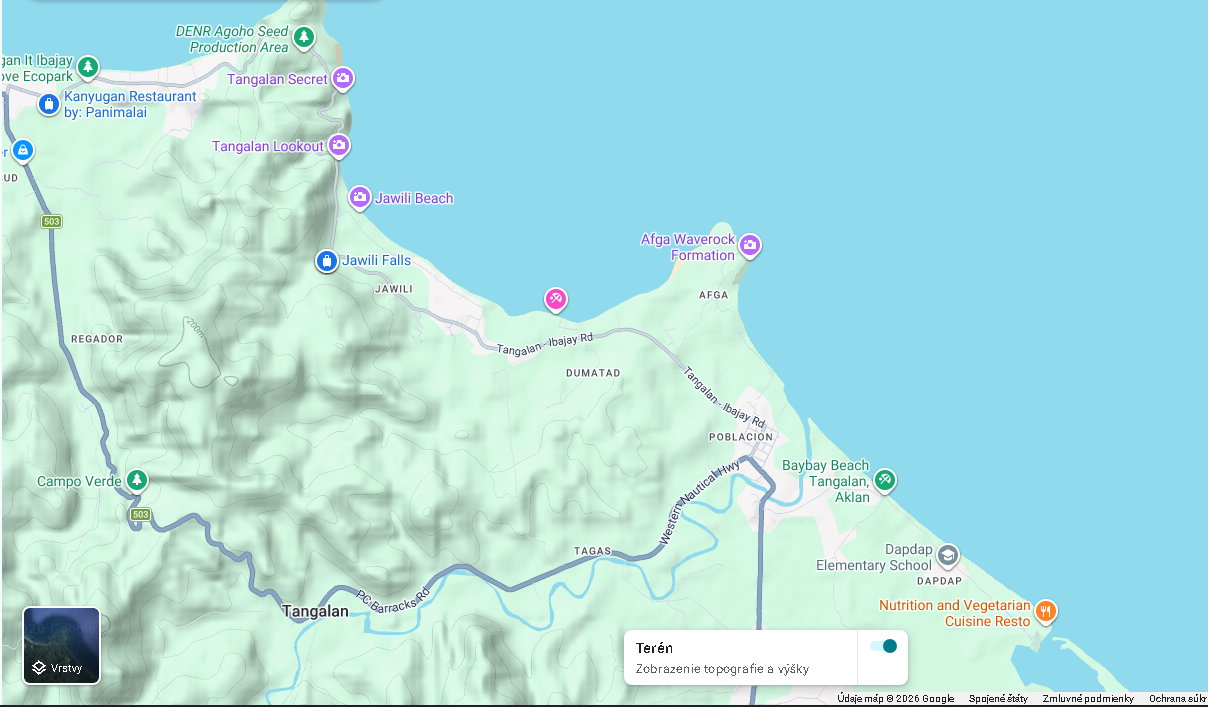

04 — aklan — segment
04 — aklan — segment

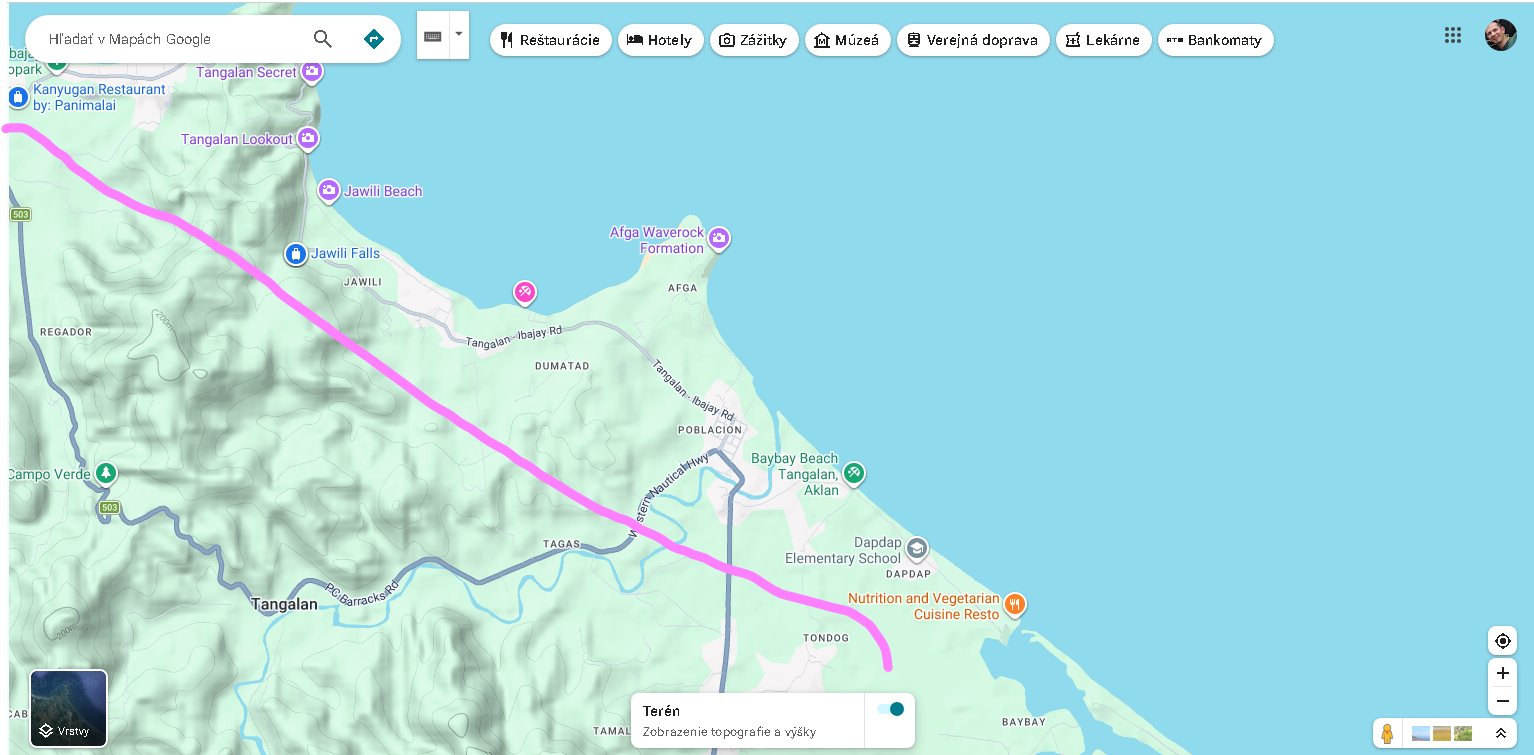

05 — aklan — segment
05 — aklan — segment

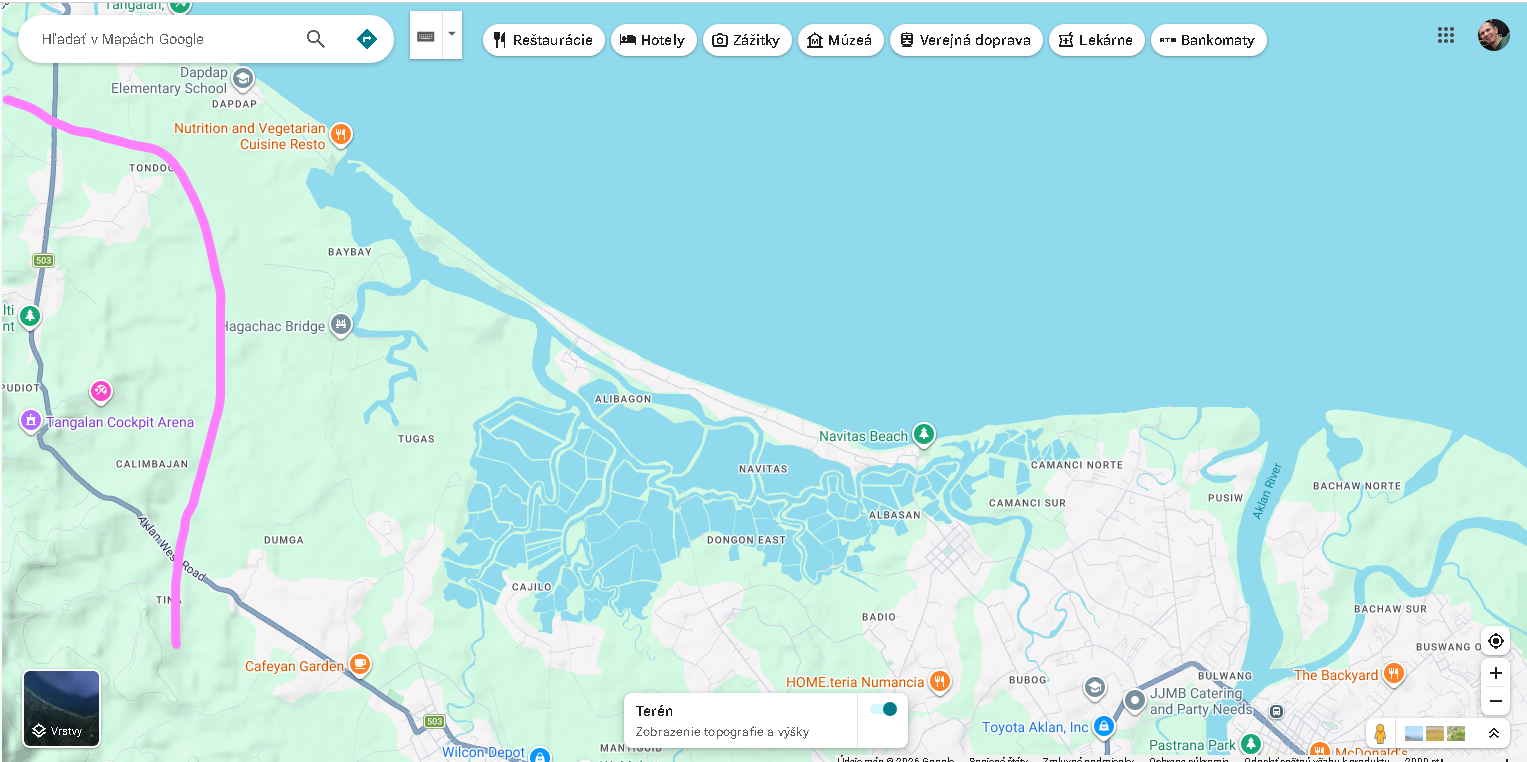

06 — tangalan — bypass
06 — tangalan — bypass

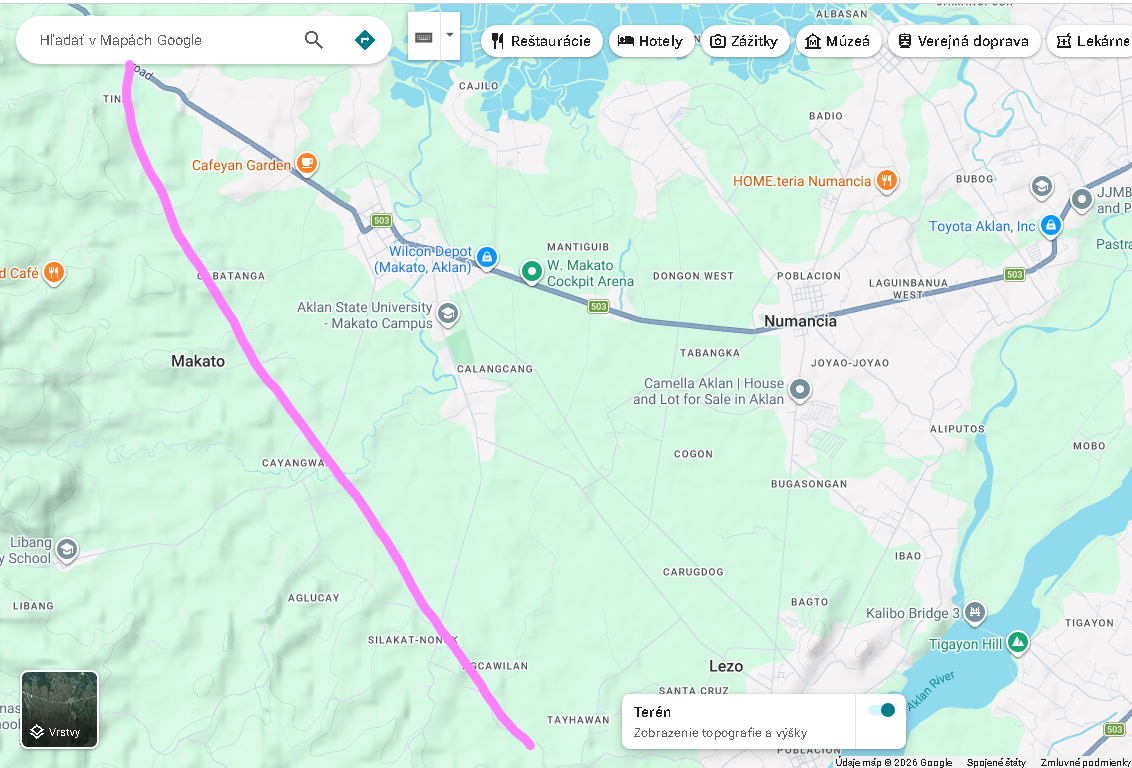

07 — aklan — segment
07 — aklan — segment

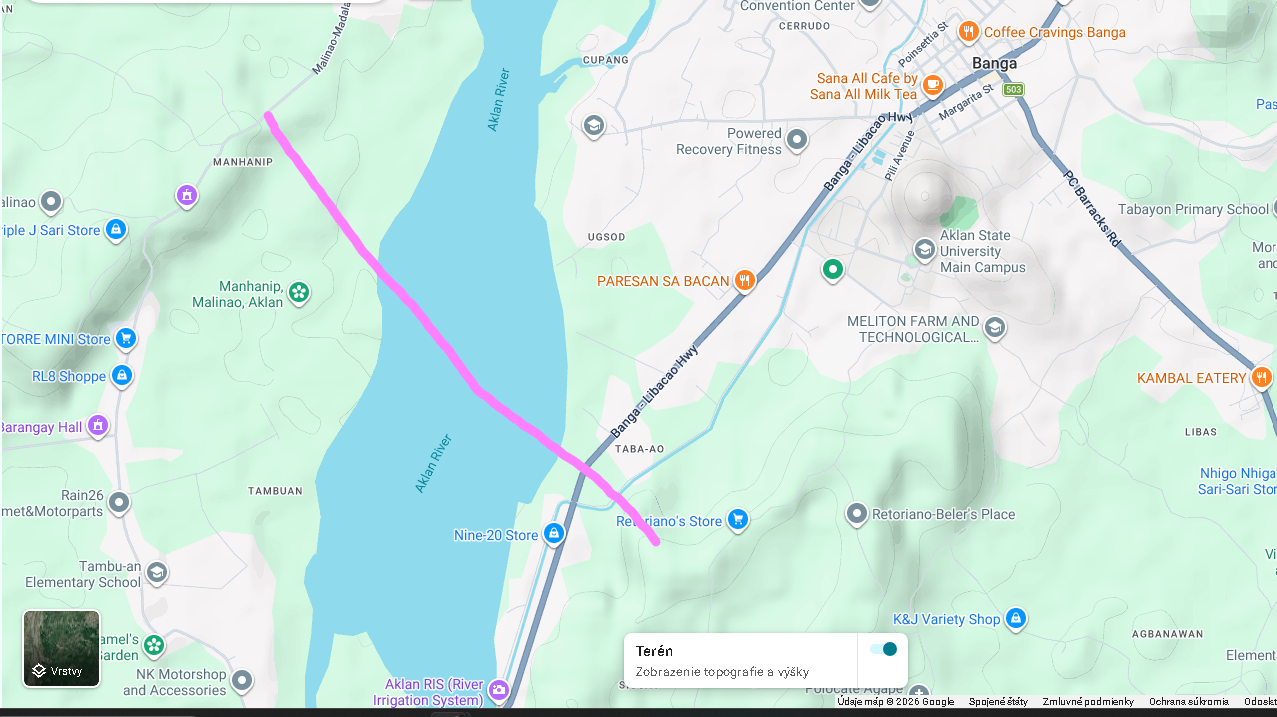

08 — aklan — segment
08 — aklan — segment

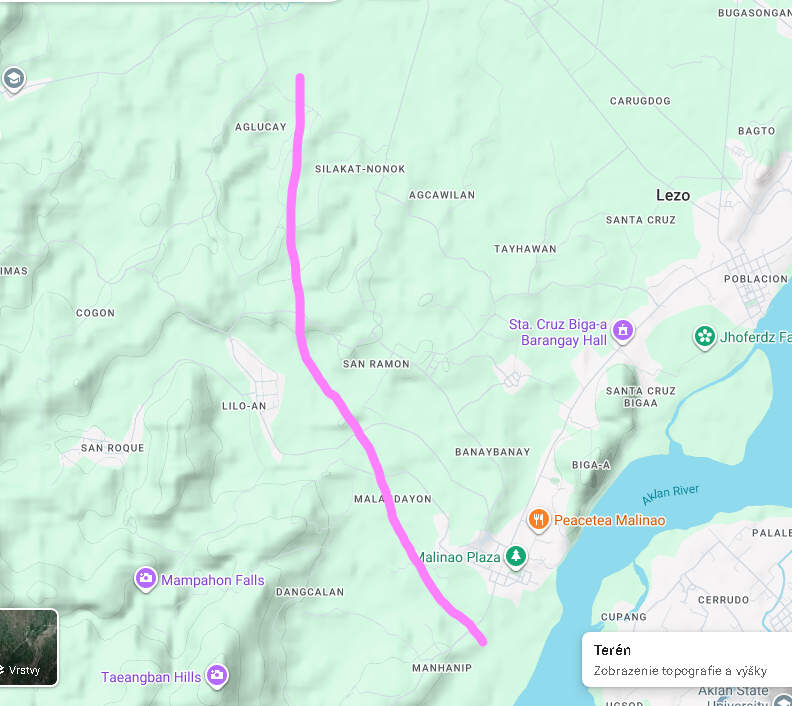

09 — aklan — segment
09 — aklan — segment

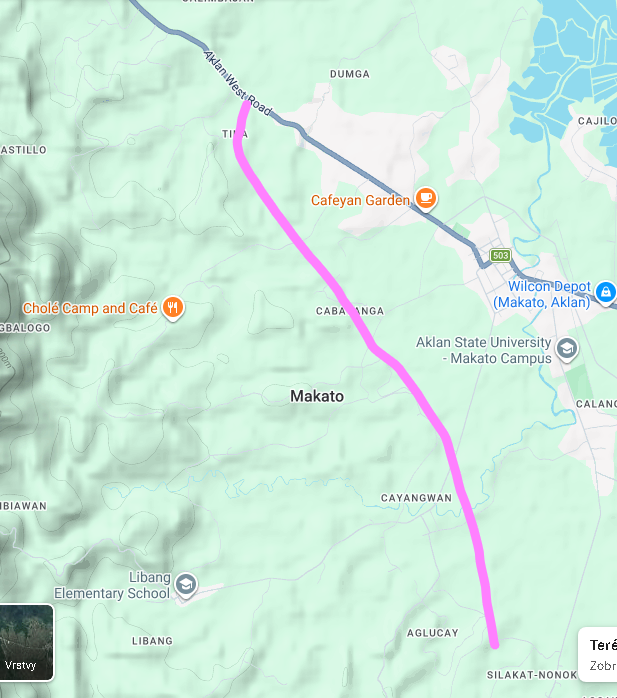

10 — aklan — segment
10 — aklan — segment

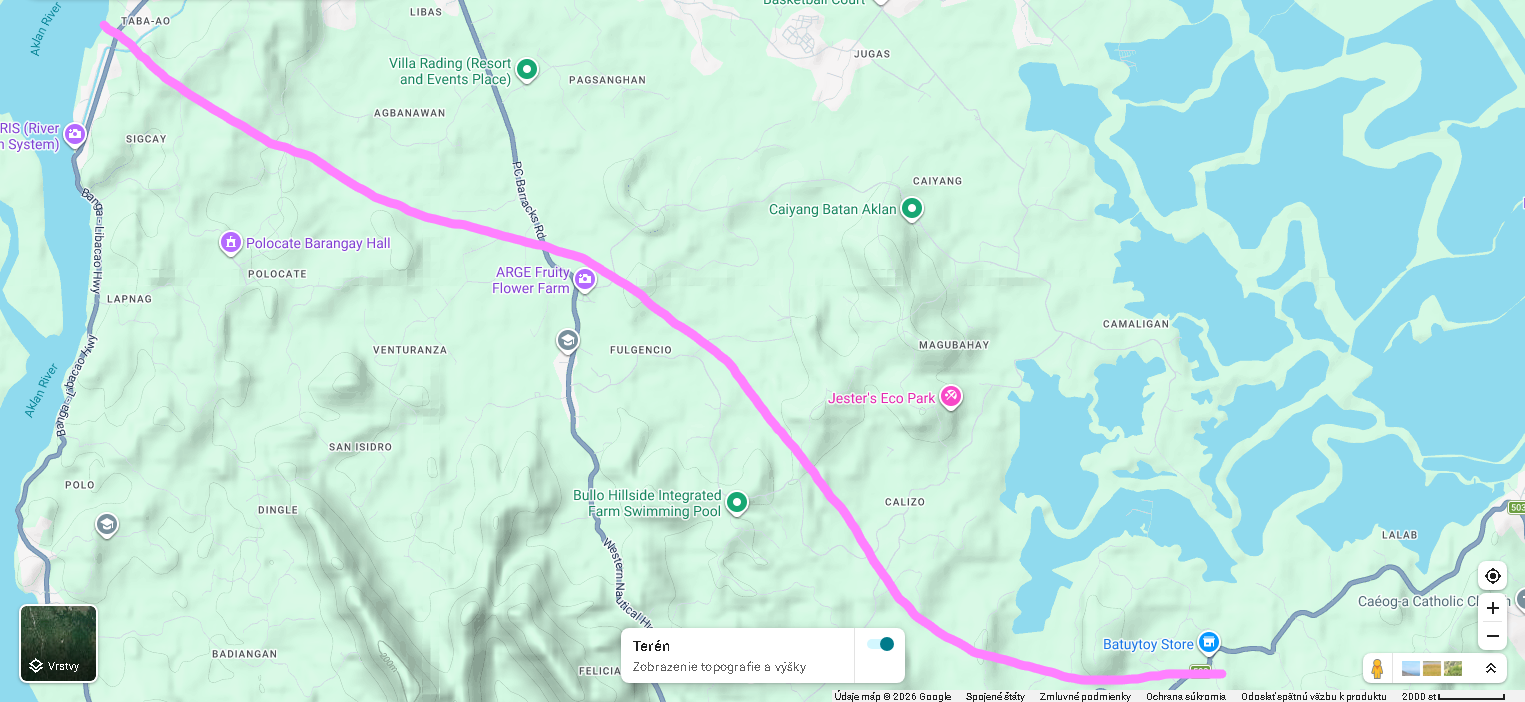

11 — tabaao — batuytoy
11 — tabaao — batuytoy

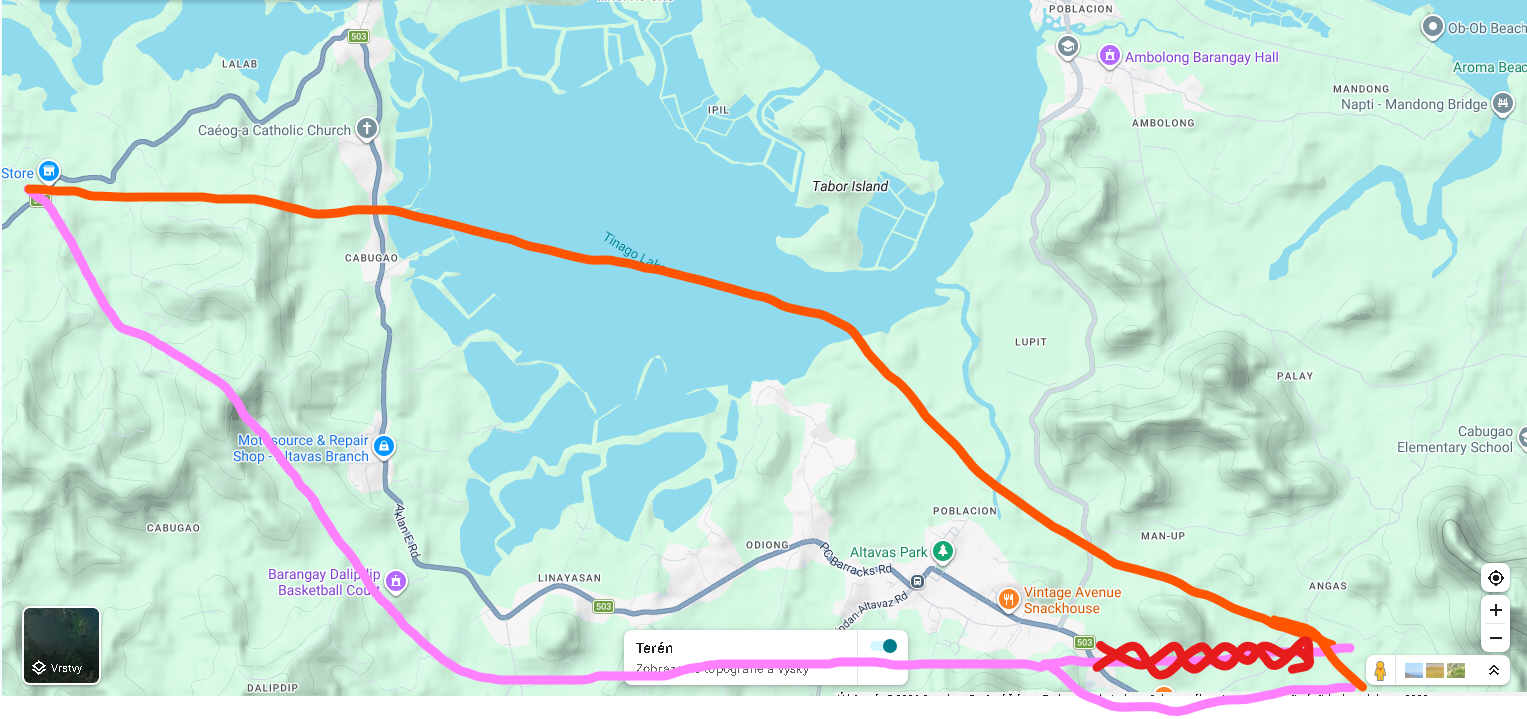

12 — capiz — segment
12 — capiz — segment

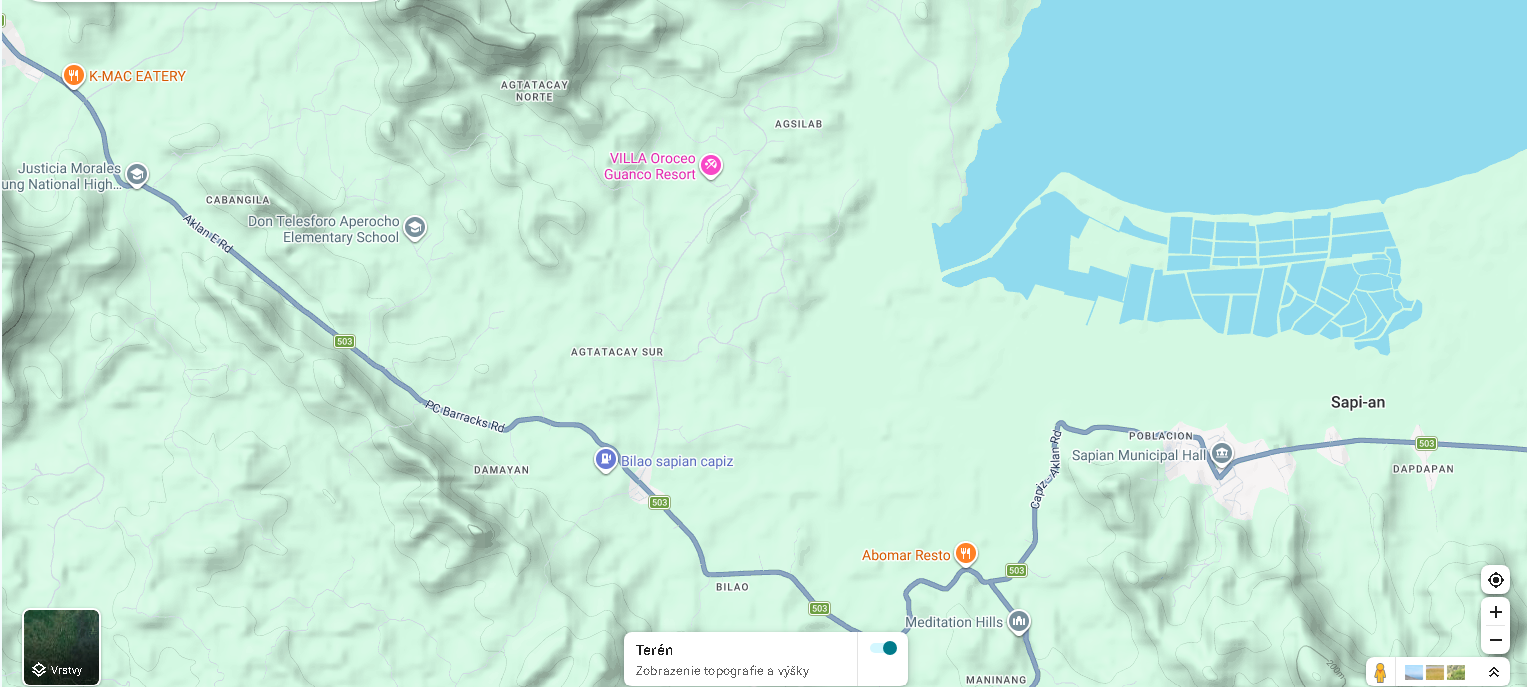

13 — capiz — segment
13 — capiz — segment

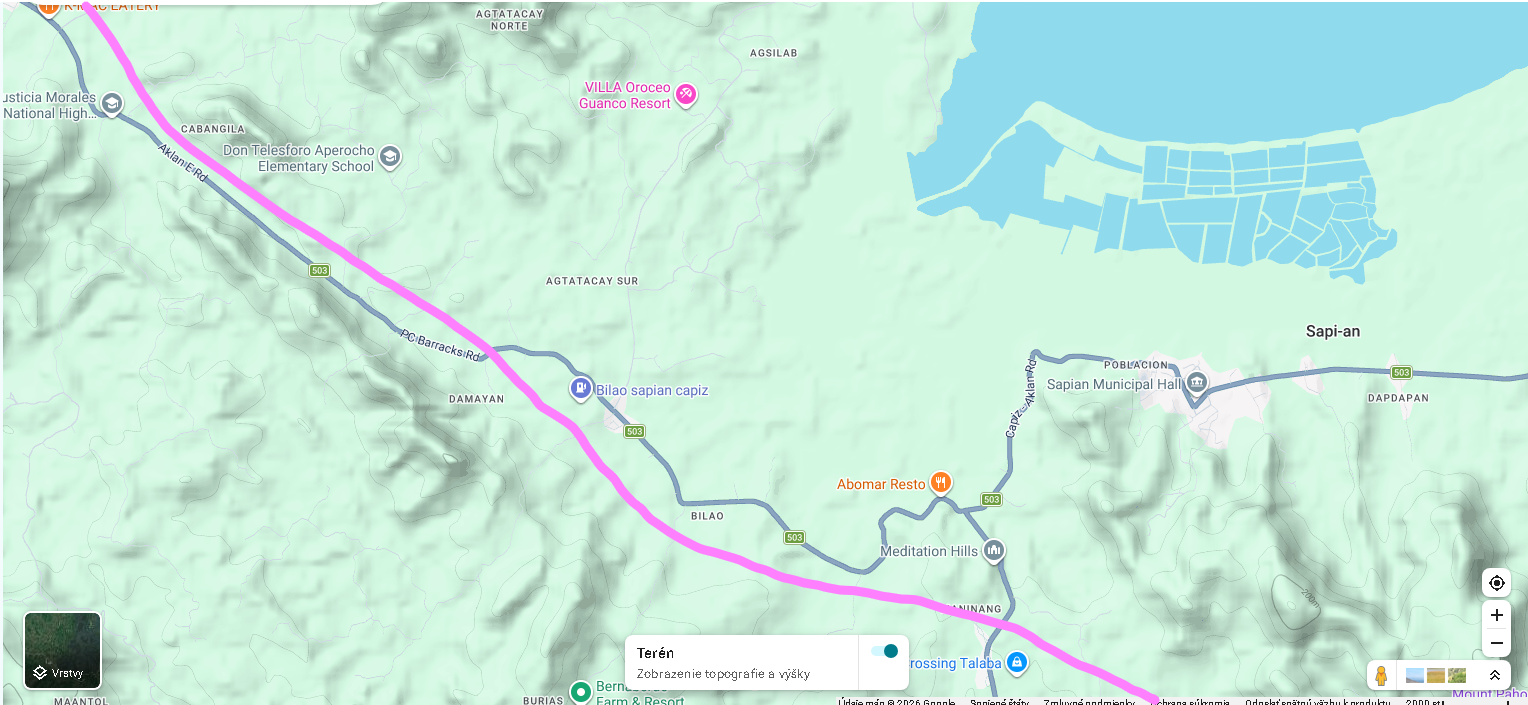

14 — cabangila — sapian
14 — cabangila — sapian

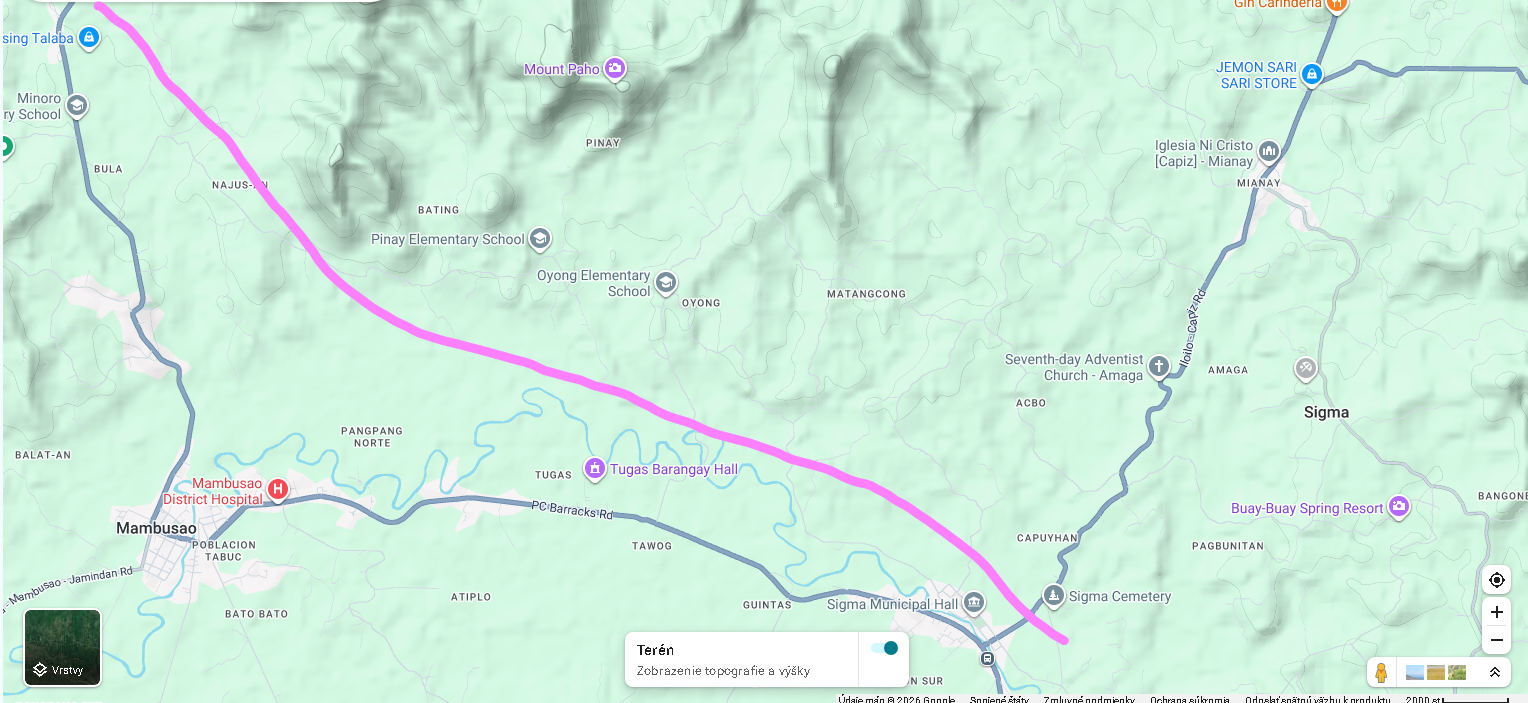

15 — capiz — segment
15 — capiz — segment

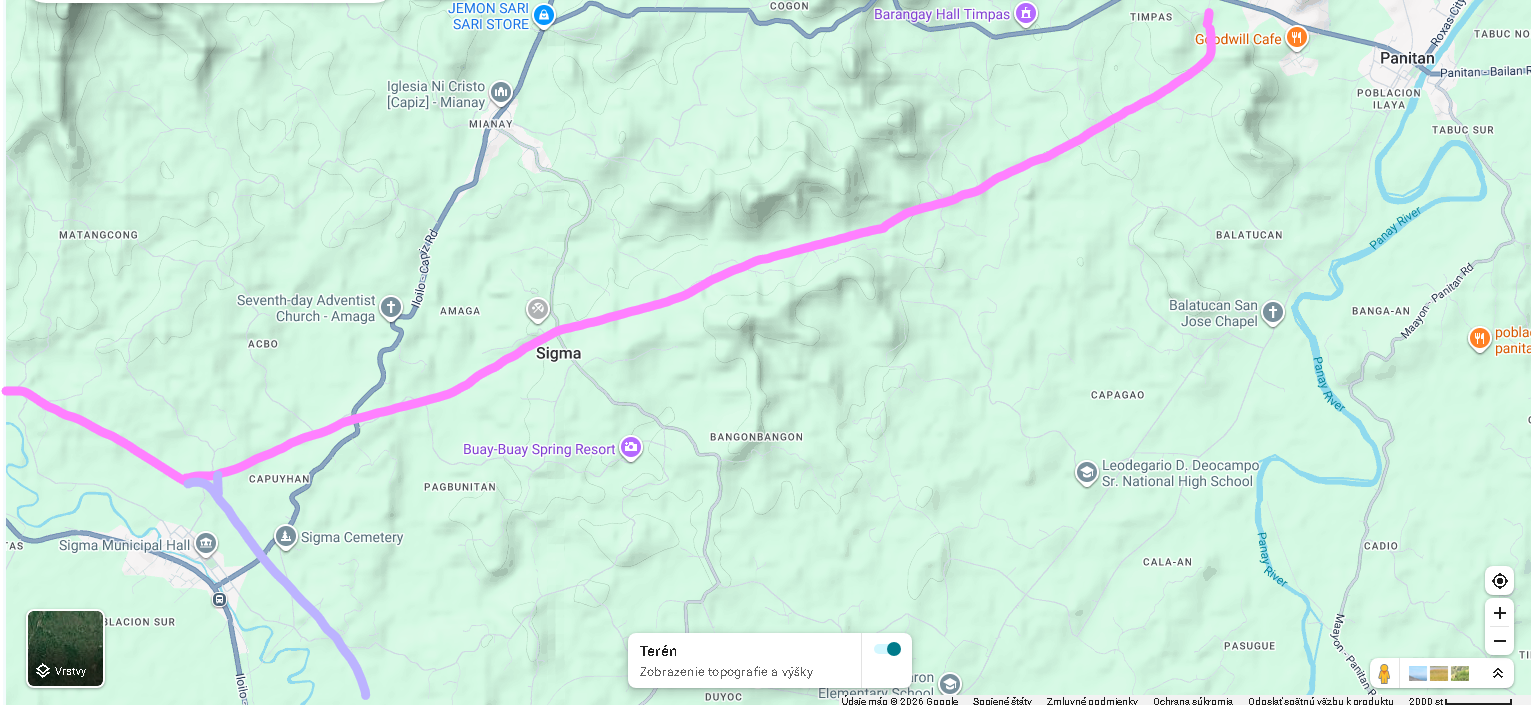

16 — capiz — segment
16 — capiz — segment

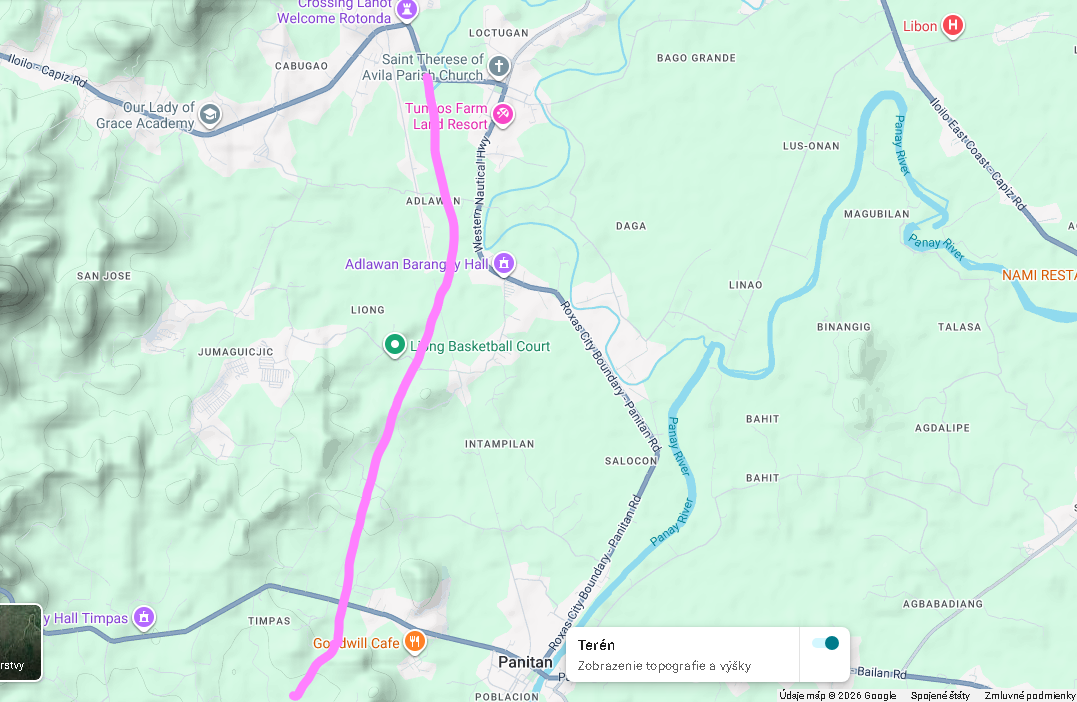

17 — capiz — segment
17 — capiz — segment

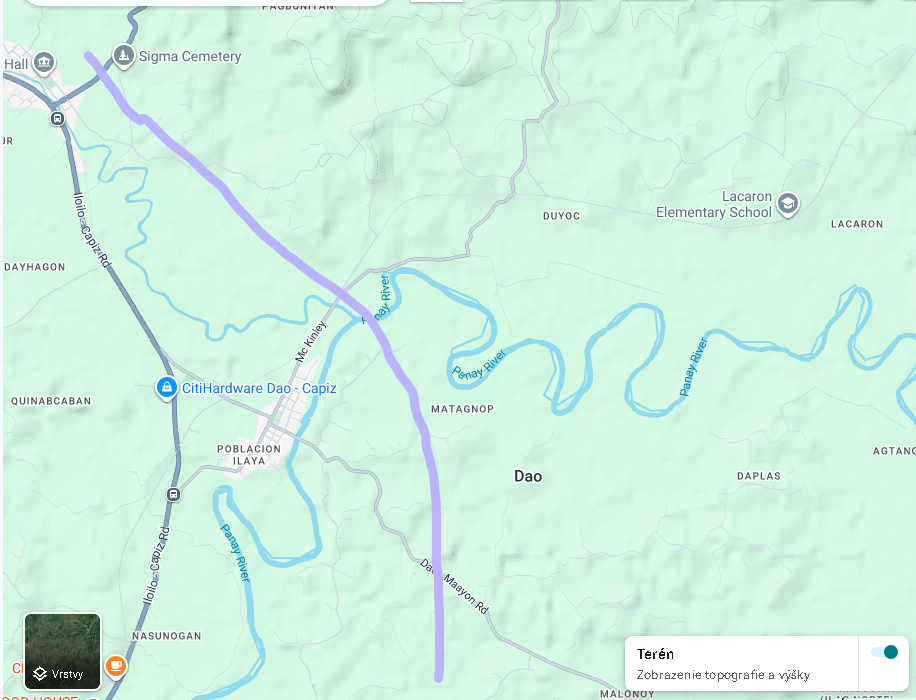

18 — sigma — dao — iloilo
18 — sigma — dao — iloilo
